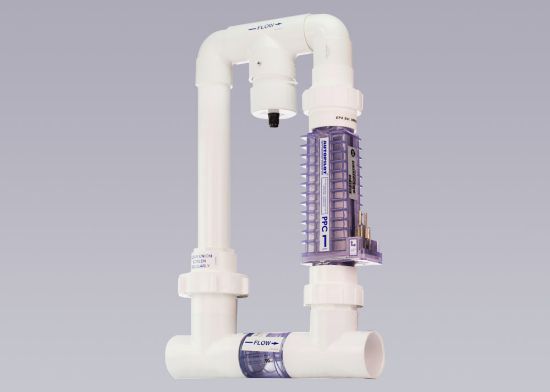

Manifold with PPC1 Cell and Base

Manufacturer: AutoPilot
Availability: 1000 in stock
Manufacturer part number: PPM1
Manufacturer Recommended Price: $980.60

AutoPilot’s patented Bypass Manifold is a pre-assembled unit designed to control the flow rate delivered to our cell. The spring check valve in the manifold allows excess flow, over 20 gpm, to bypass the cell. The water in turn flows at a controlled rate through the cell where it is super chlorinated. The inline strainer on the inlet side of the manifold protects the Tri-Sensor and production cell from debris that might bypass the filter. The location of the strainer next to a connection union makes periodic cleaning easy.


California residents – Click here for Proposition 65 warning

Products specifications
Attribute nameAttribute value

1.) Inline Strainer – Protects the Tri-sensor and the Cell from debris that may bypass the filter and obstruct either component. The location of the strainer in the connecting union makes it easy to remove for periodic cleaning.
2.) Tri-sensor – Is a three way sensing device which measures flow, salt level, and water temperature.
3.) Chlorine Production Cell – The cell produces 100% pure Sodium Hypochlorite in your pool plumbing, returning it to your pool.
4.) Check Valve – The check valve in the Manifold allows all water flowing through the plumbing at a rate greater than 20 gallons per minute to by-pass the production cell to maximize the production of chlorine.

Additional information

Additional information

Weight10.00 lbs
Dimensions13 × 18 × 7 in
Cell Type

PPC1 Cell

Physical Dimensions

4 x 13 x 21 in

Physical Weight

8 lbs


This patented Bypass Manifold includes the PPC1 cell, Tri-sensor and check valve.

For pools up to 40,000 gallons when used with the Digital, 75003 or Soft Touch power supply.

For pools up to 28,000 gallons with used with the Digital Nano power supply.

pdf iconU.S. Warranty
pdf iconInternational Warranty
pdf iconParts Warranty
